0-200V 10A DC Voltmeter and Ammeter with Shunt - 0.28'' - 4 digits

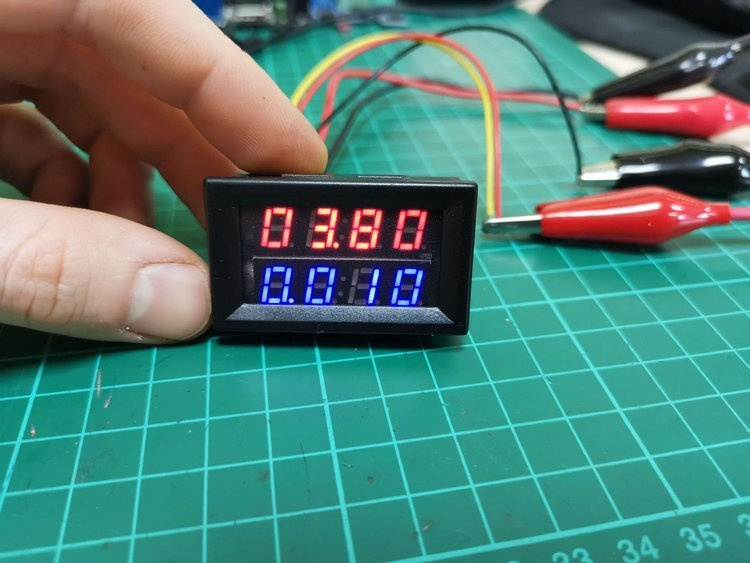

Universal panel meter with built-in shunt. The digital voltmeter measures from 0 to 200V and the ammeter from 0 to 10A. The values are displayed on the same screen with an accuracy of 4 digits.
Red indicates the result of the voltmeter and blue indicates the result of the ammeter.
The meter has two potentiometers so that it is possible to calibrate the indications of the voltmeter value and to calibrate the value of the current indications.
If the meter and receiver are powered from one source, do not connect the black power cable from the 3-pin connector.
A convenient way to make your own meter in your device.
Technical data
Power supply voltage of the meter: DC 4.5V - 30V
Measurement:
0-10A DC current
voltage 0-199.9V DC
Digit size: LED 0.28 "
Refresh rate: 1 measurement / 500 ms
Accuracy of measurement: 1%
Working temperature -10 * to 65 * C
dimensions 48 x 29 x 28 mm
Mounting hole dimensions: 45 x 26 mm
Pinout
Thin wires
- red - power supply of the meter (max 30V)
- black - GND power ground
- yellow - voltage measurement. With a power supply up to 30V, you can connect with a thin red one.
Thick wires:
black shunt input - current measurement
red shunt output - current measurement
