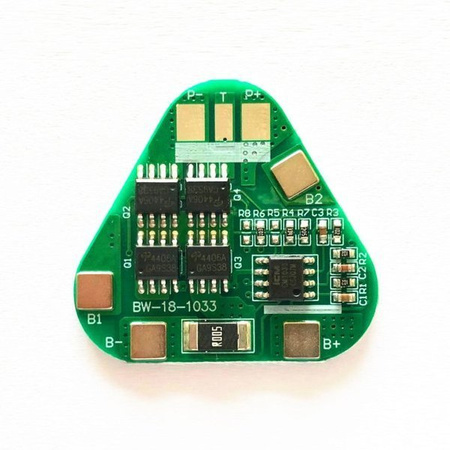

3S 8A 12V BMS/PMS Li-Ion Charging Balancer & Protection Module

Electronic system protecting batteries against discharging and at the same time a charger for these batteries. It allows you to build a safe battery pack that does not need to be charged with special Li-ion chargers.
The 2 in 1 module will keep the cells in the best conditions, preventing them from overcharging and over-discharging. One module replaces the charger and the security module here.

Product features

Short circuit protection
Overcharge protection
Over-discharge Protection
Overcurrent protection
Compact size and lightweight.
Ensure the safety of the battery

Technical data

10.8V (3.6V * 3S) lithium batteries and accumulators
11.1V Lithium Batteries (3.7V * 3S)
12.6V (4.2V * 3S) lithium-ion batteries
Over charge protection: 4.25-4.35v ± 0.05v (per cell)
Over-discharge protection: 2.3-3.0v ± 0.05v (per cell)
Working current: 8A
Module dimensions: 31x32mm
Weight: 2.5g
