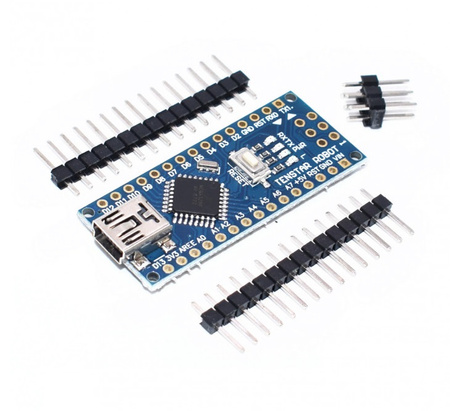

Arduino NANO 3.0 ATMEGA328 CH340 Compatible Board

Arduino NANO 3.0 ATMEGA328 CH340 Compatible Board
Arduino NANO 3.0 ATMEGA328 CH340 Compatible Board
Arduino NANO 3.0 ATMEGA328 CH340 Compatible Board
Arduino NANO 3.0 ATMEGA328 CH340 Compatible Board
Arduino NANO 3.0 ATMEGA328 CH340 Compatible Board
Arduino NANO 3.0 ATMEGA328 CH340 Compatible Board
11,17 €
/ pc
Easy return of this product within 14 days from the date of purchase for any reason
Free collection for orders over 5,00 €

Universal mini module compatible with the original Arduino, equipped with a microcontroller from the mega AVR series - ATMEL ATMEGA 328P AU.

Arduino NANO V3.0 clone
High-quality motherboard with a built-in microcontroller from the megaAVR series - ATMEL ATMEGA328P AU.

ATMEL ATMEGA328P-AU
Microcontroller from the megaAVR series, twists in terms of specifications with ATMEGA328P-PU. The only difference is the SMD surface soldered housing.

USB converter - UART CH340
The converter enables programming of the module by connecting it directly to the USB port of the PC

Technical data:
- Supply voltage: 5V
- Cable for communication and power: mini-USB
- Compatible with Arduino NANO V3.0
- Microcontroller: ATmega328P
- SRAM memory: 1 kB
- Flash memory: 32 KB
- EEPROM memory: 1 kB
- 16MHz quartz resonator
- Manual reset button
- I / O ports: 14
- PWM outputs: 6
- Analog inputs: 8
- LEDs to control the operation of the system
- ISP6 connector for programming with the programmer
- Goldpin connectors come with the module
- The BLINK LED 13 program is loaded into the module as standard

The set contains:
- NANO V3.0 board compatible with Arduino
- Goldpin Headers - to be soldered

Useful links:
- CH340 USB driver http://www.driverscape.com/download/usb-serial-ch341
- IDE software https://www.arduino.cc/en/Main/Software

Product code
GL.000.205
