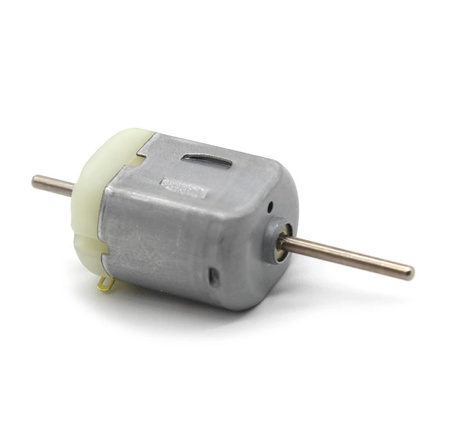

Class 130 12V DC Dual Long Axis Brush Motor

DC 12V electric motor, for Arduino, intelligent cars, robotics which is ideal for educational projects for children.

This class 130 motor can be used as a generator and wind turbine. It can light up 3V LED lamp with one turn of the hand, and has high power generation efficiency. And the motor can also be connected with an external solar panel to supply power through solar energy; Moreover, the electric brush of the motor is a carbon brush one with extended service life time and has the advantages of wear resistance.

Technical data:

Working voltage: DC 1.5V-12V
Reference speed: about 3700 rpm at 6V and 7000 rpm at 12V
No load current at 3V: 30mA
Stall current: 90mA
Dimensions: length 25 x width 20 x height 15 mm
Shaft diameter: 2mm
Shaft length: front end 18mm, rear end 8mm
Weight: 18.45g
