Class 130 T2 DC Brush Motor MT78 - 9V - for TT Robots

9V mini brush motor suitable for small devices, robotics and projects. It will certainly find its application also in Arduino projects.
Possibility to change the motor to the one in TT drive sets with MT78 130, 3-6V class motors. Thanks to this modification, the drive set can be powered with higher voltage, which also translates into greater drive power.

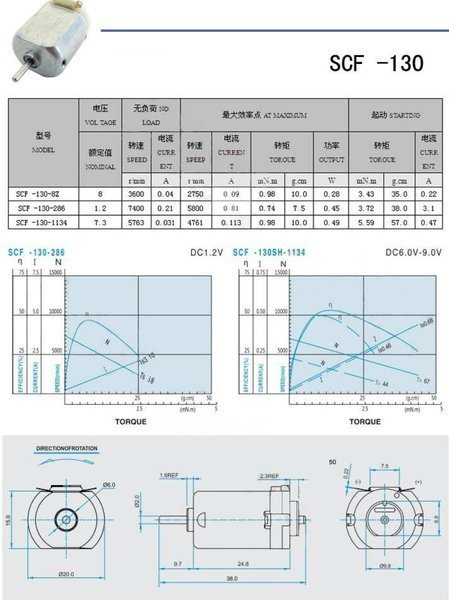

Technical data

motor (shaft) length: approx. 24.8 mm
motor size: 20mm x 15mm
supply voltage: 9V
no-load current: 0.03A
stall current consumption: 500mA - 9V / 600mA - 12V
rotational speed: 3600 RPM
output shaft length: 9.7mm
shaft diameter: 2 mm
