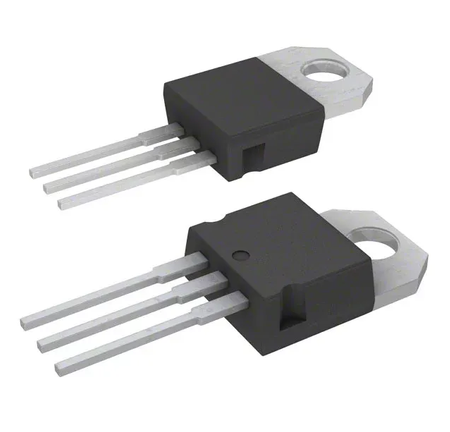

LM7812CV Positive 12V 1.5A Voltage Stabilizer TO-220

LM7812CV Positive 12V 1.5A Voltage Stabilizer TO-220
LM7812CV Positive 12V 1.5A Voltage Stabilizer TO-220
LM7812CV Positive 12V 1.5A Voltage Stabilizer TO-220
LM7812CV Positive 12V 1.5A Voltage Stabilizer TO-220
0,32 €
/ pcs
5 pcs
Easy return of this product within 14 days from the date of purchase for any reason

LM7812CV Regulator Type Linear Voltage


Maximum Output Current  1.5A
Number of Outputs           1
Output Voltage                 12 V
Line Regulation                240mV
Load Regulation               240mV
Polarity                           Positive
Mounting Type                 Through Hole
Package Type                   TO-220
Quiescent Current             8mA
Pin Count                         3
Output Type                     Fixed
Dimensions                      10.4 x 4.6 x 9.15mm
Operating Temperature      0 °C to 125 °C
Maximum Input Voltage     40 V

Product code
GL.000.240
