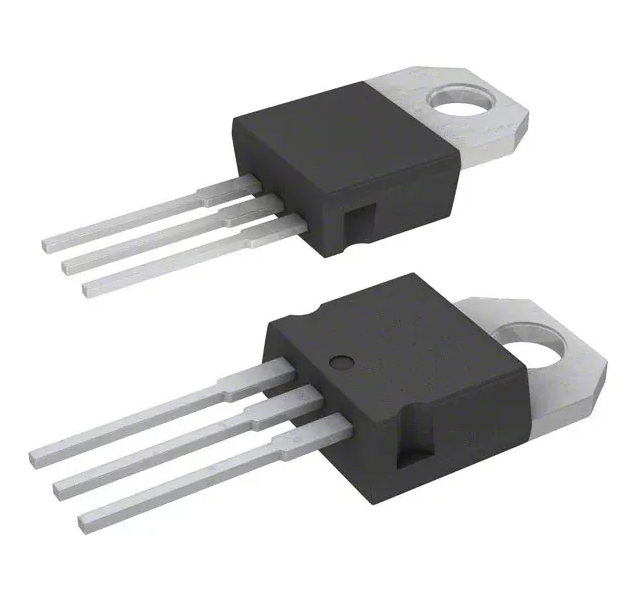

LM7906CV Negative 6V 1.5A Voltage Stabilizer TO-220

LM7906CV Negative 6V 1.5A Voltage Stabilizer TO-220
LM7906CV Negative 6V 1.5A Voltage Stabilizer TO-220
LM7906CV Negative 6V 1.5A Voltage Stabilizer TO-220
LM7906CV Negative 6V 1.5A Voltage Stabilizer TO-220
0,32 €
/ pc
Easy return of this product within 14 days from the date of purchase for any reason
Free delivery for orders over 85,00 €

LM7906CV Regulator Type Linear Voltage


Maximum Output Current  1.5A
Number of Outputs           1
Output Voltage               -6 V
Line Regulation                100mV
Load Regulation               100mV
Polarity                           Negative
Mounting Type                 Through Hole
Package Type                   TO-220
Quiescent Current             3mA
Pin Count                         3
Output Type                     Fixed
Dimensions                      10.4 x 4.6 x 9.15mm
Operating Temperature      0 °C to 150 °C
Maximum Input Voltage    -35 V

Product code
GL.004.872
