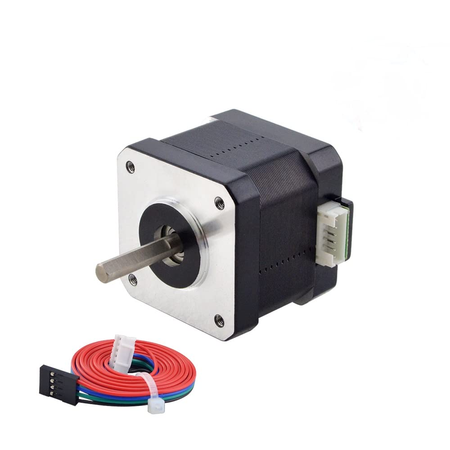

NEMA17 HS3401S 2-Phase Hybrid 42 Stepper Motor

Technical data:

Number of phases: 2
Rated voltage: DC3.4V
Phase resistance (20 ° C): 3.4 x (1 floor 15%) 2 / Phase
Clamping torque: ≥ 290mn. M
Direction (shaft extension): a-ab-b-clockwise
Maximum no-load operating frequency: ≥ 2000 PPS
Electric strength: ac600v / 1mA / 1s
Moment of inertia: 43.2g. cm2
Step angle: 1.8 ° ± 0.09 °
Nominal current: DC 1.0 A / phase
Phase inductance (1kHz): 5.4 X (1 ground 20%) MH / phase
Positioning torque: 20 MN. M
Maximum no-load startup frequency: ≥ 1400pps
Insulation resistance: ≥ 100 MQ (DC 500V)
Insulation class: Class B

Dimensions: 42 x 42 x 33.5 mm

Shaft: D-type 5 x 22 mm
