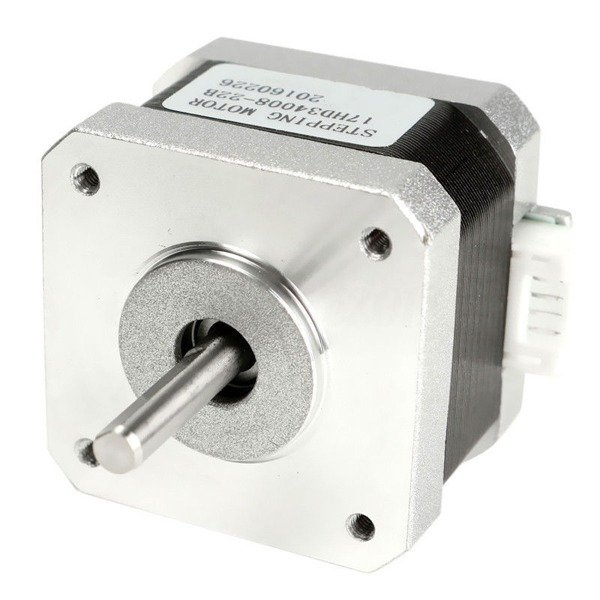

NEMA17 Stepper Motor KS42STH40-1204A, 1.2A, 4kg/cm, 0.4Nm, 40mm
- NEMA17 stepper motors are the most popular motors used in the construction of 3D printers, milling machines, plotters and other electronically controlled devices.
Product description
NEMA17 stepper motors are the most popular motors used in the construction of 3D printers, milling machines, plotters and other electronically controlled devices.
The middle part where the coils are wound consists of a number of ferromagnetic plates connected to each other. Strong neodymium magnets ensure precise work. The kit includes 4 wires connected with a plug dedicated to stepper motors. On the other hand, the cable is terminated with a 4-pin pin plug, which allows direct connection to stepper motor controllers such as, for example, a set for building a RAMPS 3D printer or SHIELD for a CNC machine tool and many others.
Product features
High starting speed
Get precise angular movements at a reasonable price
It can be used to activate disk transistors in the correct order
The ease of operation makes the engine convenient to use
Motors for a wide range of applications, used in 3D printers, monitoring devices, packaging machines, stage lighting, etc.
Technical data
Motor length: 43mm
Axle diameter: 5mm
Current intensity: 1.2A - phase
Inductance: 4.5 mH 20% (1KHz 1V rms)
Step: 1.8 °
Steps per revolution: 200
Cable length: 70cm
Torque: 0.4 Nm
Certificate: CE, ROHS
Max. temperature: 80 degrees
Ambient temperature range -20 ~ + 50
Insulation resistance 100M - Min. 500V DC
500V AC dielectric strength for 1 minute
Wiring: 4:
Red B +
Blue B -
Black A +
Green A -
Dimensions (4.3 x 4.3 x 4) cm (L x W x H)
Weight: 290g
