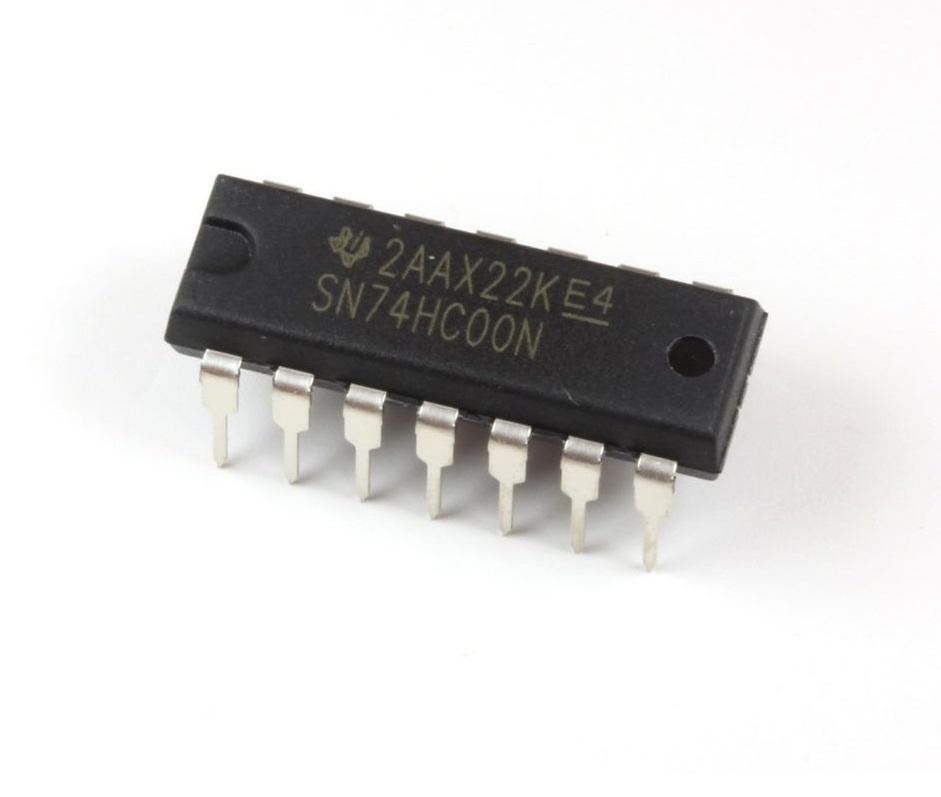

SN74HC00N 74HC00 7400 Quadruple 2-Input NAND Gate - CMOS - DIP14
![](/data/include/deliveries/icons/140025_1.gif)
The SN74HC00 devices contain four independent, 2-input NAND gates. They perform the Boolean function Y = A × B or Y = A + B in positive logic.
The 74HC uses MOSFET technology. Therefore can operate with wider variety of voltages. Power consumption is better than TTL (but increases at higher frequencies). Has better noise margins so can work in noisy environments compared to TTL.
Features
Wide Operating Voltage Range of 2 V to 6 V
Outputs Can Drive Up to 10 LSTTL Loads
Low Power Consumption: ICC 20-µA (Maximum)
Typical tpd: 8 ns
±4-mA Output Drive at 5 V
Low Input Current: 1 µA (Maximum)
Technical data:
Ambient Temperature Range High 85 °C
High Level Output Current -5.2 mA
Logic Function NAND
Low Level Output Current 5.2 mA
Max Operating Temperature 85 °C
Max Output Current 4 mA
Max Supply Voltage 6 V
Min Operating Temperature -40 °C
Min Supply Voltage 2 V
Nominal Supply Current 20 µA
Number of Bits 4
Number of Channels 4
Number of Circuits 4
Number of Elements 4
Number of Gates 4
Number of Input Lines 2
Number of Inputs 2
Number of Output Lines 1
Number of Outputs 1
Operating Supply Voltage 5 V
Output Current 5.2 mA
Propagation Delay 8 ns
Quiescent Current 2 µA
Schmitt Trigger Input No
Turn-On Delay Time 20 ns
